The Carbon Footprint of Your Green Sand: Coal Dust's Hidden LCA Impact

The Number Most Foundries Don't Track

Every foundry tracks casting rejections, bentonite consumption, and sand properties. Almost none track the carbon footprint of their green sand process.

This was fine when CO2 emissions were an environmental concern but not a commercial one. That's changing. The EU's Carbon Border Adjustment Mechanism (CBAM) will tax the embedded carbon in goods imported into Europe — including castings from Indian foundries. Suddenly, the CO2 generated by your coal dust isn't just an emissions figure — it's a cost line.

Understanding where carbon comes from in your green sand process is the first step toward managing it.

Where the Carbon Actually Comes From

In a green sand foundry, carbon emissions from the moulding process come primarily from the combustion of the carbon additive — coal dust, sea coal, or other lustrous carbon formers (LCF).

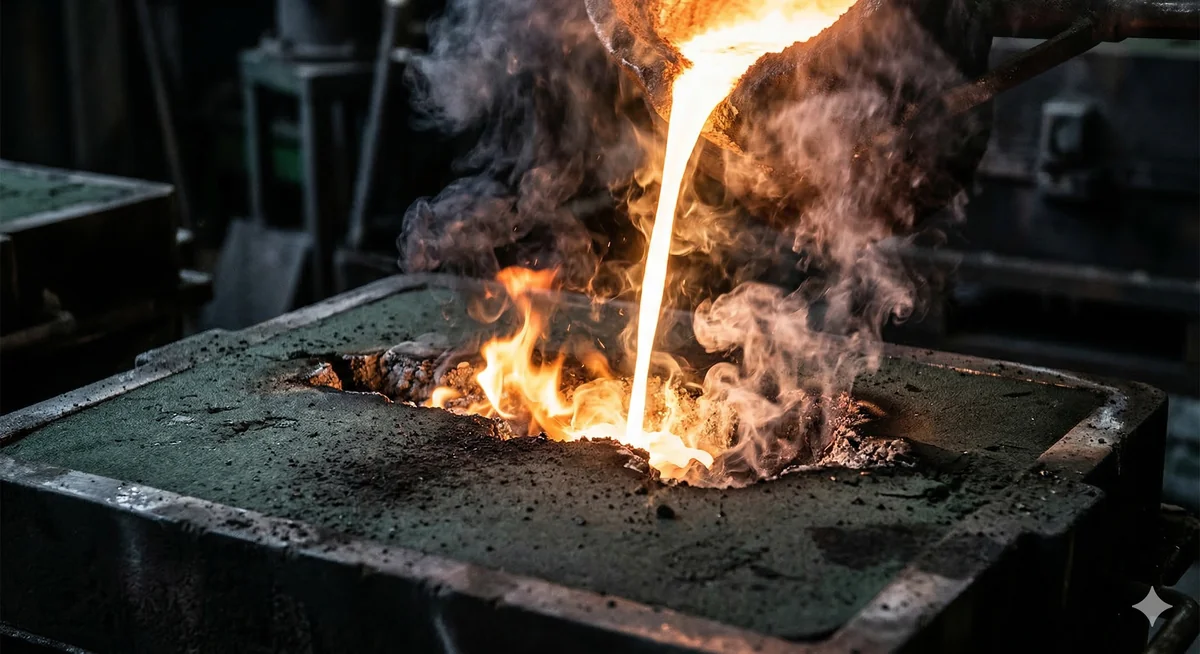

The chemistry is straightforward: when coal dust combusts in the mould, the carbon reacts with oxygen to produce CO2. Every 1 kg of coal dust that fully combusts releases approximately 3.6 kg of CO2.

For a medium-sized foundry using 30 kg of coal dust per batch, running 450 batches per day, that's 13,500 kg of coal dust burned daily — producing approximately 48,600 kg of CO2 per day from the green sand process alone. Over a year, that's roughly 15,000 tonnes of CO2.

This doesn't include bentonite production (which has its own carbon footprint), energy for sand plant operation, or emissions from metal melting. The green sand moulding process — specifically coal dust combustion — is one of the largest direct emission sources in the foundry that is also one of the easiest to address.

Why This Matters Now: CBAM and Beyond

The EU's CBAM began its transitional phase in 2023 and moves into full implementation with financial obligations from 2026. For Indian foundries that export castings to Europe, this means:

Embedded carbon in your castings will be calculated and reported. The green sand process contribution — driven primarily by coal dust combustion — will be part of this calculation.

European importers will pay a carbon price on that embedded carbon. At current EU ETS prices, this could add meaningful cost per tonne of castings exported.

Foundries that can demonstrate lower embedded carbon through verified methods (like switching from coal dust to lower-emission alternatives) will have a procurement advantage. European OEMs will increasingly favour suppliers with documented lower carbon footprints.

India's Bureau of Energy Efficiency (BEE) and CPCB are also tightening domestic emission norms for foundries, creating parallel pressure on the domestic front.

Life Cycle Assessment: Seeing the Full Picture

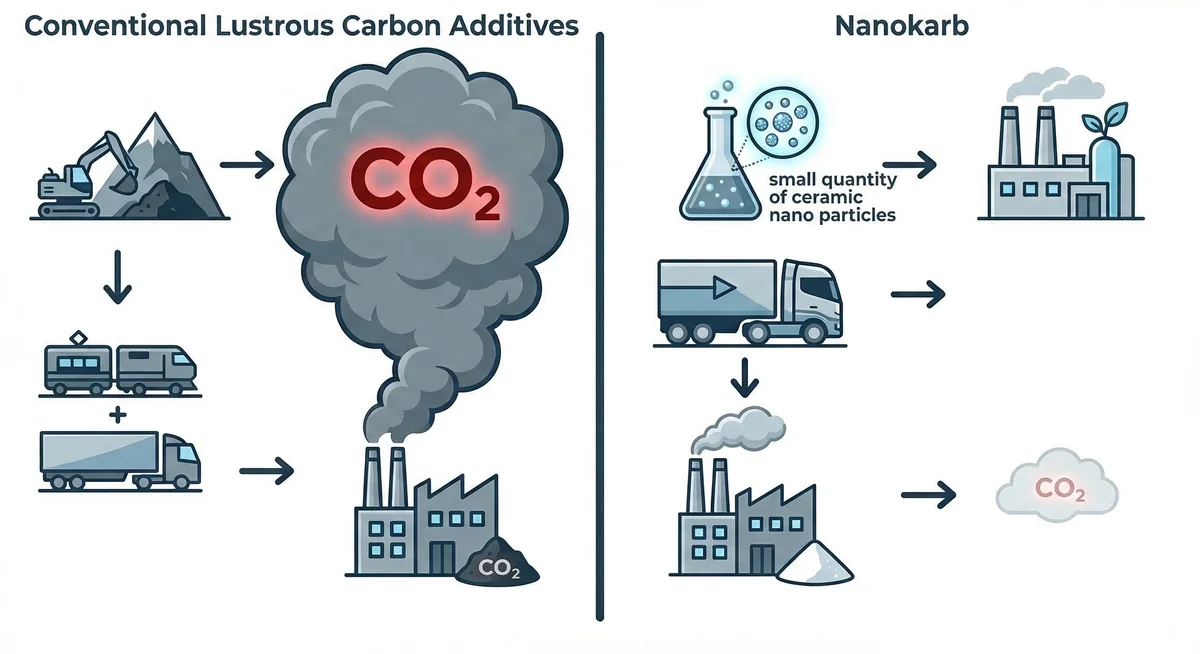

A Life Cycle Assessment (LCA) of your carbon additive looks at emissions across the entire product lifecycle: raw material extraction (A1), transport to your facility (A2), and the use phase — where combustion in the mould generates the bulk of emissions.

For conventional coal dust, the use-phase emissions dominate. The coal was formed from biological carbon millions of years ago, and when it combusts in your mould, that sequestered carbon is released as CO2. This is fossil carbon entering the active carbon cycle — it adds to the atmospheric CO2 burden.

Nanotechnology alternatives like Nanokarb take a different approach. With 0% volatile matter at 400°C and less than 10% at 925°C, Nanokarb doesn't combust in the same way coal dust does. The non-wetting barrier it creates at the mould-metal interface works through surface properties of its ceramic nanoparticles, not through burning. The result is a minimum 50% reduction in CO2 emissions from the green sand process.

Refcoat has prepared an Environmental Product Declaration (EPD) for Nanokarb following ISO 14025 and EN 15804 standards, covering the cradle-to-gate lifecycle (A1-A3). This provides verified, third-party audited emissions data that foundries can use directly in their CBAM reporting.

The Financial Case

For a foundry considering the switch, the carbon footprint reduction isn't just an environmental story — it's a financial one:

Direct CBAM cost avoidance: Reducing 15,000 tonnes of CO2/year by 50% saves 7,500 tonnes. At €50-80/tonne (current EU ETS range), that's €375,000-600,000 in avoided CBAM costs annually for a medium-sized foundry exporting to Europe.

Raw material savings: Nanokarb replaces coal dust at a 1:2 ratio and reduces bentonite by 10-30%. The net material cost is typically lower despite Nanokarb's higher per-kg price.

Customer procurement advantage: European OEMs are actively screening suppliers for lower-carbon alternatives. Documented EPD data becomes a competitive differentiator in tender processes.

What You Can Do Today

Start by calculating your current green sand carbon footprint. The formula is straightforward: coal dust consumed per month (kg) × 3.6 = approximate CO2 from your green sand process (kg). If you're exporting to Europe, this number will soon have a direct cost attached to it.

Then request a free assessment from Refcoat. We'll model your specific sand system, predict the emission reduction from switching to Nanokarb, and provide the EPD documentation you'll need for compliance reporting.
